RC10 4WD Buggy Kit, ASC-6040

Team Associated RC10 4WD Buggy Kit, ASC-6040

Our team of engineers took the iconic RC10, the knowledge of 4WD racing from the B74, and created the RC10 4WD. No more having to buy an RC10 kit, a conversion kit, and random parts. Now you can have a genuine Team Associated RC10 4WD that is meant to be raced, with all the parts in one box. All you need to do is add electronics and hit the track!

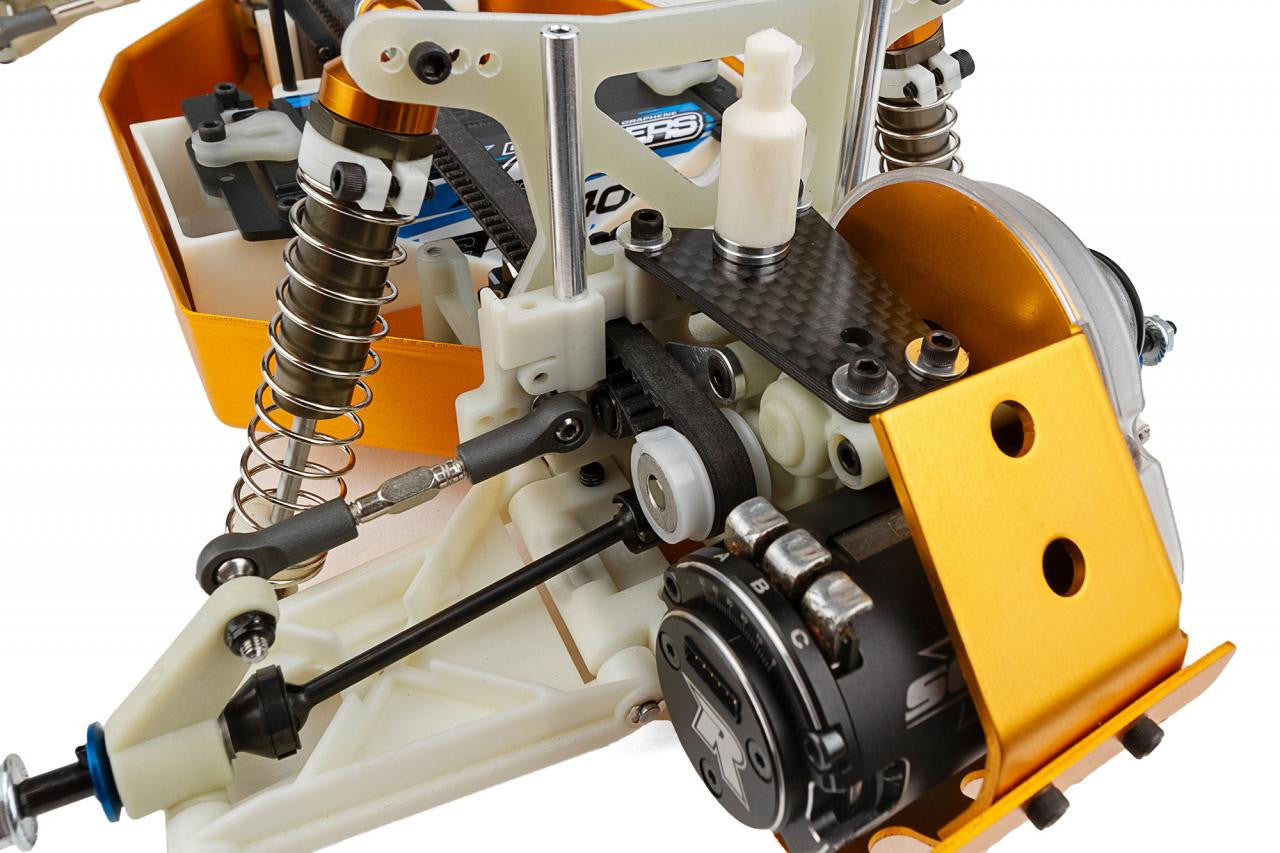

Front and rear Stealth® transmissions with adjustable ball differentials, race proven V2 slipper clutch system, CVA driveshafts and durable low-friction center belt tension system. The smooth undercarriage of the RC10’s aluminum monocoque tub and special gearboxes provide maximum ground clearance.

Independent suspension with hard anodized coil-over shocks help smooth out the bumps. Precision molded; nylon suspension components can be easily custom color dyed. Long front A-Arm/Ball Joint design permits static camber, camber rise, caster, ride height and spring rate tuning to suit every type of track.

Kit includes clear polycarbonate ProTech body with driver figure, 5.5” high-downforce wing, full ball bearings, CVA driveshafts, vintage front and rear 4WD spike tires, all on the classic gold anodized 6061-T6 monocoque tub chassis.

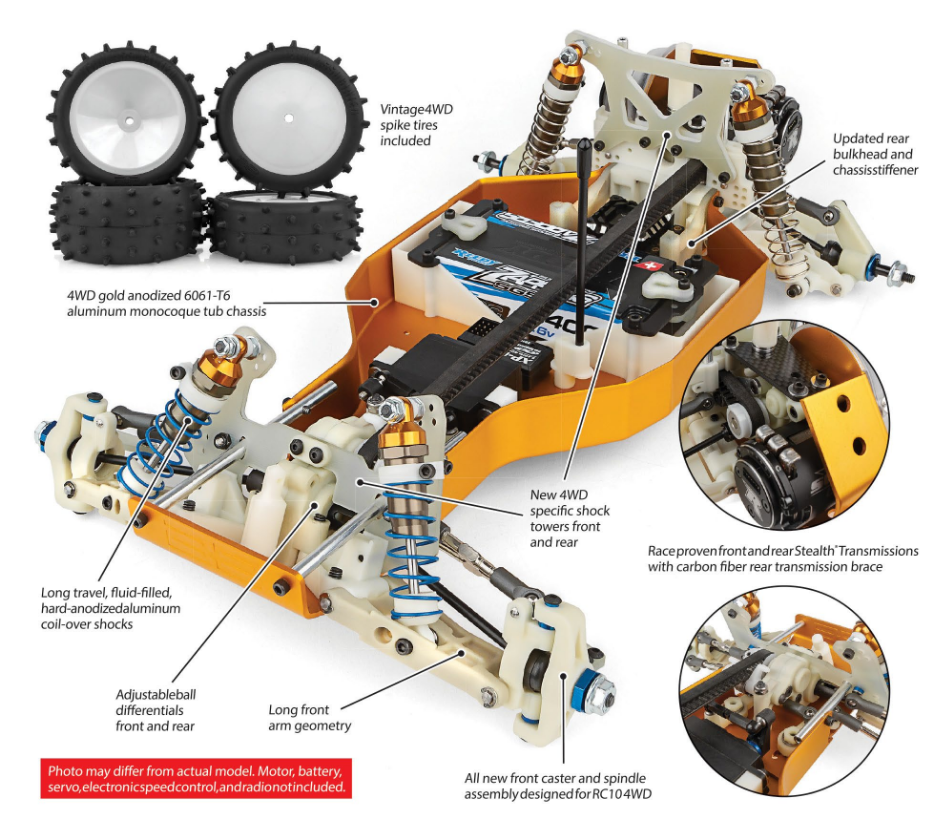

Features:
• 4WD gold anodized 6061-T6 aluminum monocoque tub chassis
• Fully adjustable four-wheel independent suspension
• Long travel, fluid-filled, hard-anodized aluminum coil-over shocks
• Race-proven front and rear Stealth® Transmissions
• Adjustable ball differentials front and rear
• Exceptional ground clearance with low center of gravity
• Vintage 4WD spike tires included
• Clear ProTech body with driver figure and wing
• New 4WD specific shock towers front and rear
• Precision bearings throughout

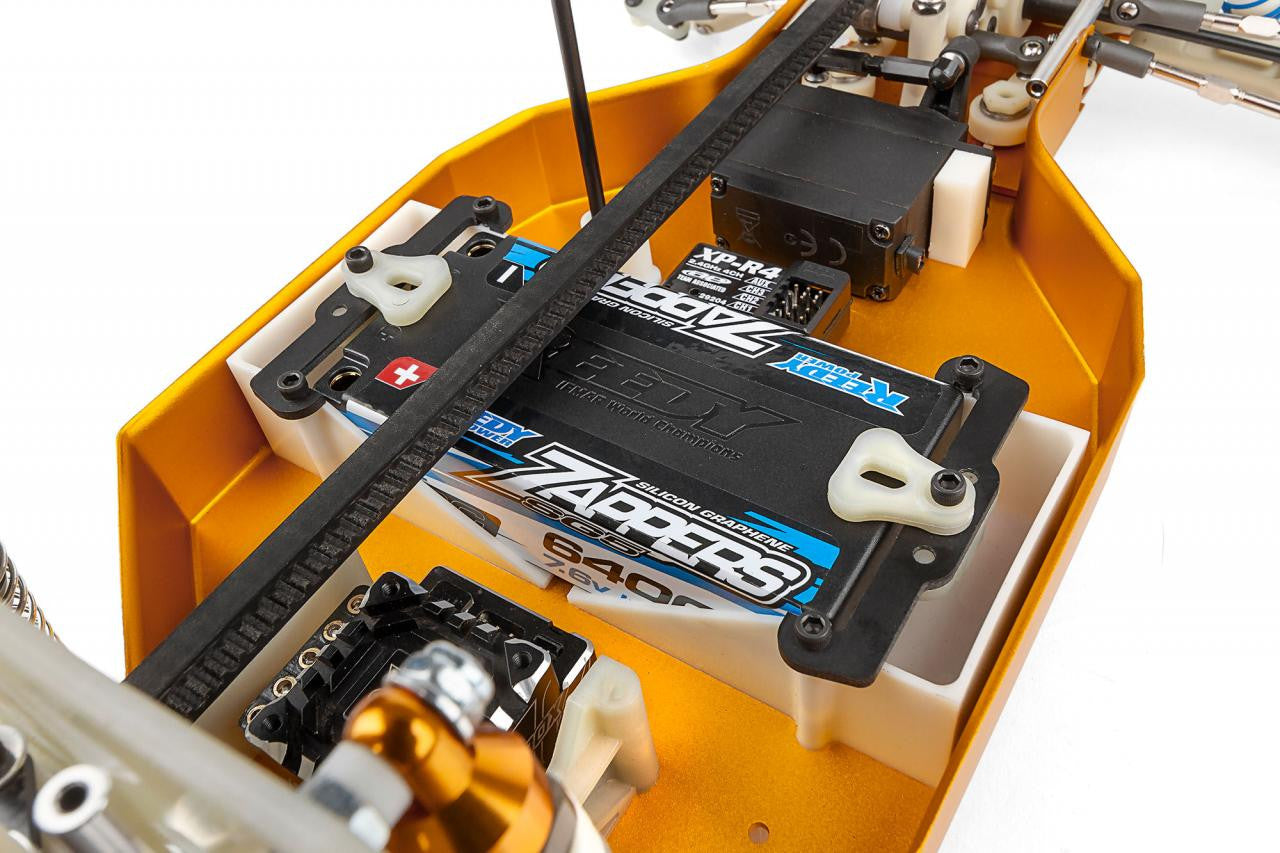

• Fits 6-cell NiMh and 2S LiPo battery packs
• Adjustable 3.5mm turnbuckles all around
• Front and rear CVA driveshafts
• Durable low-friction center belt and tension system
• Long front arm geometry
• All new front caster and spindle assembly designed for RC10 4WD
• Updated rear bulkhead and chassis stiffener
• Carbon fiber rear transmission brace
• Front 2.2” 12mm hex wheels included
• Rear 2.2” wheels included
• HD metric ball studs throughout
• Race-proven V2 slipper clutch system
• All new 4WD specific bell crank system
• 5.5” high downforce Lexan® race wing Included

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length: 381mm (15in)
Width: 241mm (9.49in)
Wheelbase: 273mm (10.75in)
Weight: varies
Drive: 4WD

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, and pinion gear. Assembly and painting required.
