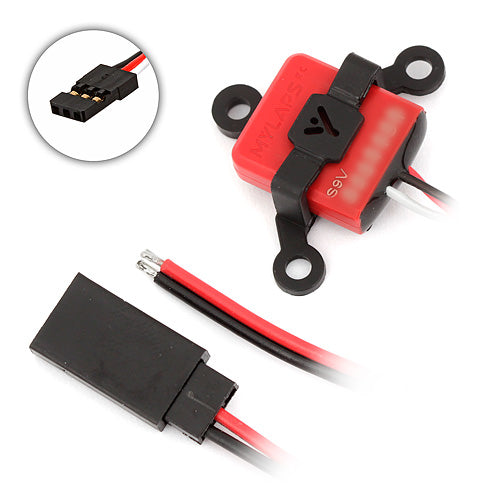

MyLaps RC4 (3-wire) Transponder MLP10R120

MyLaps RC4 (3-wire) Transponder MLP10R120

The My Laps RC4 (3-wire) transponder is the latest in the line of transponders from MyLaps. The RC4 transponder supports car ID numbers so you can have the same transponder number in all your cars, with a different ID for each. The RC4 transponder also gives additional telemetry data such as voltage to the transponder and transponder temperature each time the loop is crossed. This transponder will only work on RC4 decoder boxes with version 4 firmware or higher.

Dimensions (excluding holder): 16x19x6mm
Weight with holder: 4.7g
Operating voltage: 3.0-16.0 VDC-16.0 VDC
Power consumption: 14mA @ 6VDC
Wire insulation: PTFE (Gasoline/Nitro-methane resistant)
Holder: Included
Connection plug: standard Servo plug
ID numbers, telemetry data: yes
AMBrc2 decoder: no
RC3 decoder: no
RC4 decoder: yes
