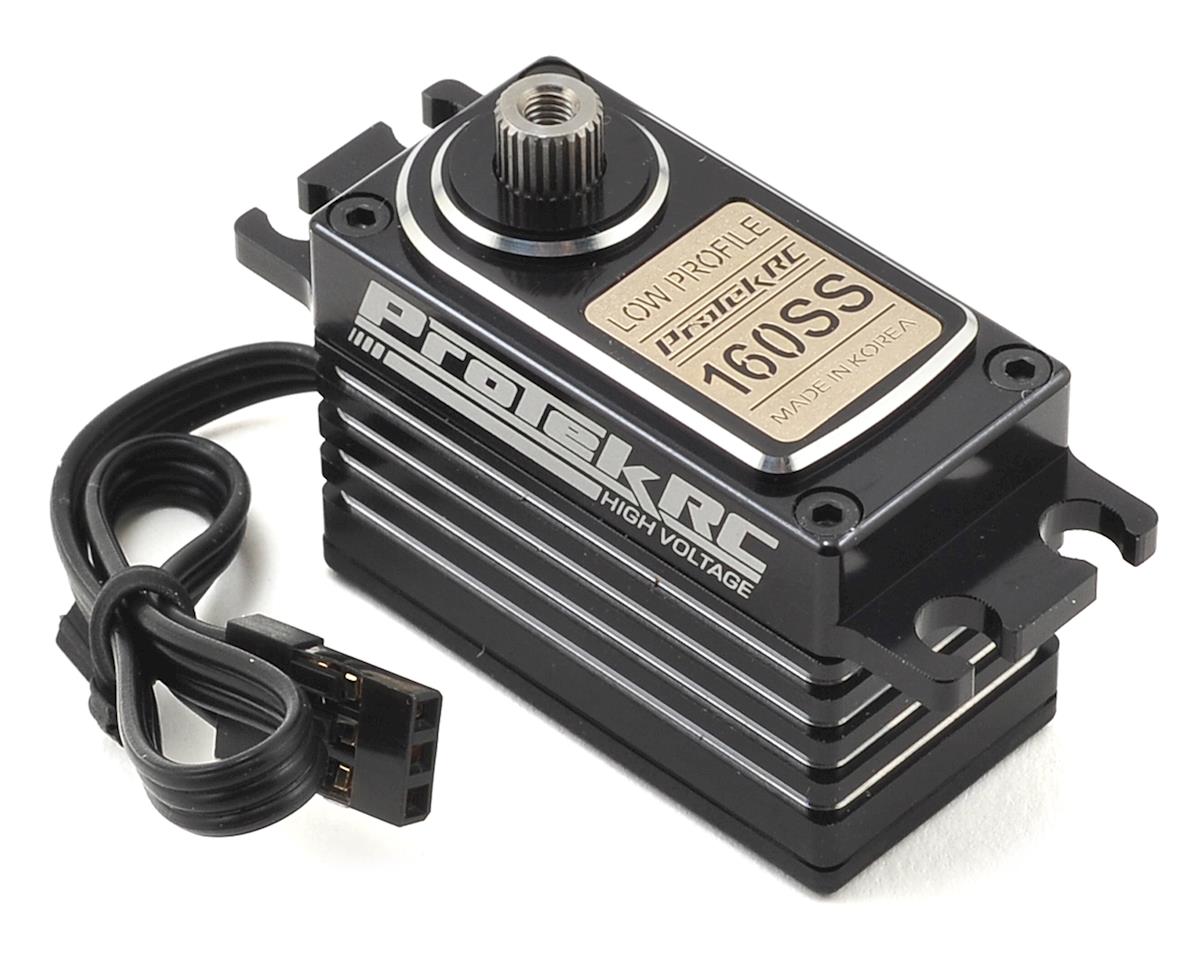

ProTek RC Low Profile Super Speed Metal Gear Servo, High Voltage, Metal Case, PTK-160ss

ProTek RC Low Profile Super Speed Metal Gear Servo, High Voltage, Metal Case, PTK-160ss

Low Profile Super Speed Metal Gear Servo, High Voltage, Metal Case

The ProTek R/C 160SS High Voltage Low Profile servo delivers 127 oz-in of torque and 0.05 transit speed at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 152 oz-in and 0.04! Spec's like these make this servo an excellent choice for any 1/12 to 1/10 scale vehicle application. Other features include a full aluminum case that provides bomb proof durability and improved heat dissipation, a metal gear train that is supported by dual ball bearings, a 160mm long 22awg connector wire with gold plated connectors, and a coreless motor.

Plus, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. And for additional rigidity, four blue aluminum servo ear guides are included as alternatives to the rubber grommets.

Features:
Low-Profile case saves space and weight
Ideal for any 1/12 to 1/10 scale vehicle application
Full aluminum case
High voltage circuitry
0.05 transit speed, and 127 oz-in of torque @ 6.0V
0.04 transit speed, and 152 oz-in of torque @ 7.4V
Aluminum single arm servo horn
Full metal gears and dual ball bearings
160mm long 22awg connector wire w/gold plated connectors
Coreless motor

Recommended Application 1/12 to 1/10 scale Surface
Operating Voltage 4.8V - 7.4V
Operating Temperature: 14 to 140 F (-10 to +60 C)
Operating Speed @ 6.0V: 0.05/60 sec
Operating Speed @ 7.4V: 04/60 sec
Dynamic Torque @ 6.0V: 127 oz-in (9.1 kg-cm)
Dynamic Torque @ 7.4V: 152 oz-in (11 kg-cm)
Motor Type: High Efficiency Coreless Motor
Output Shaft: 25 Tooth
Gears: Metal
Weight: 54.5g
Pulse/Frequency: 1520 / 333hz
