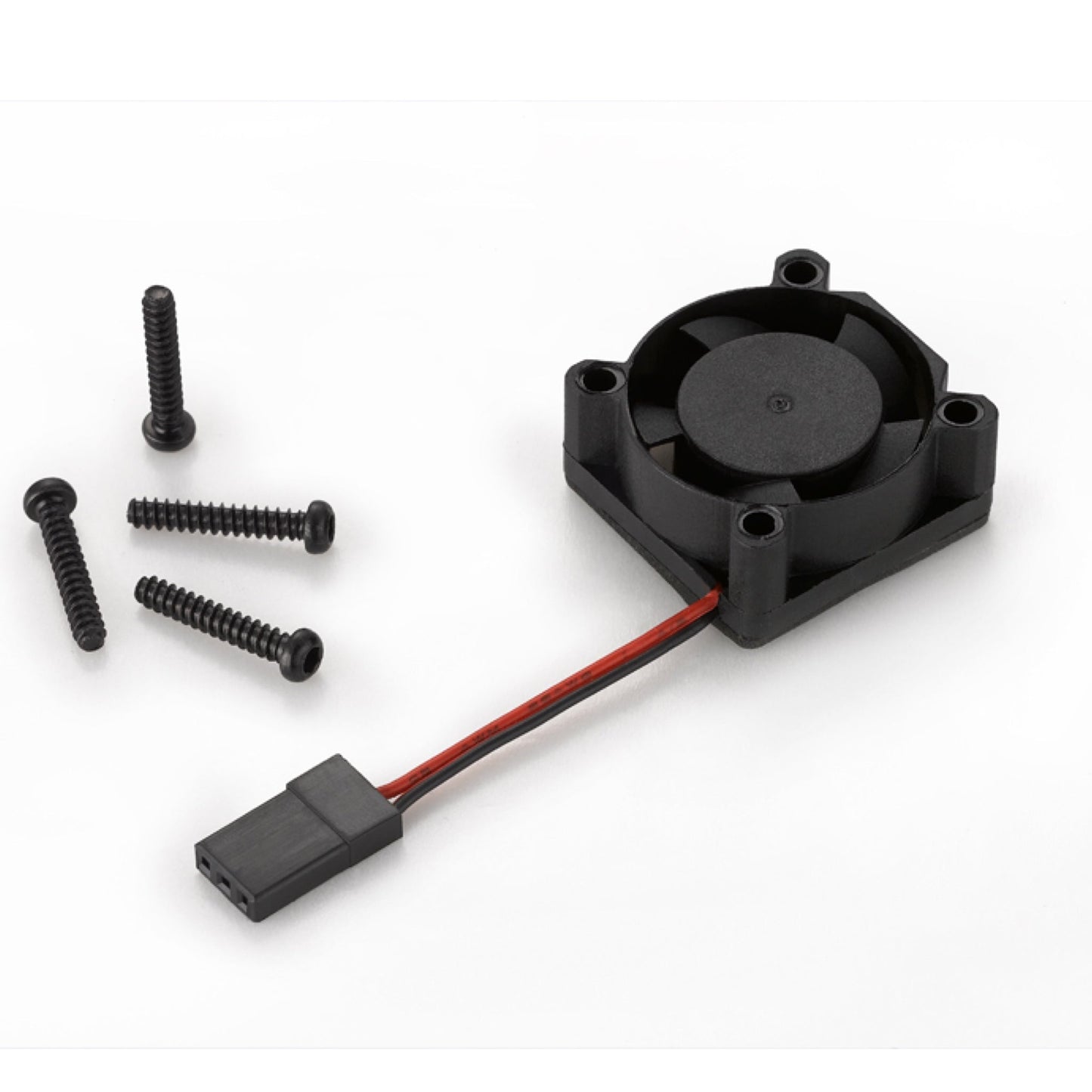

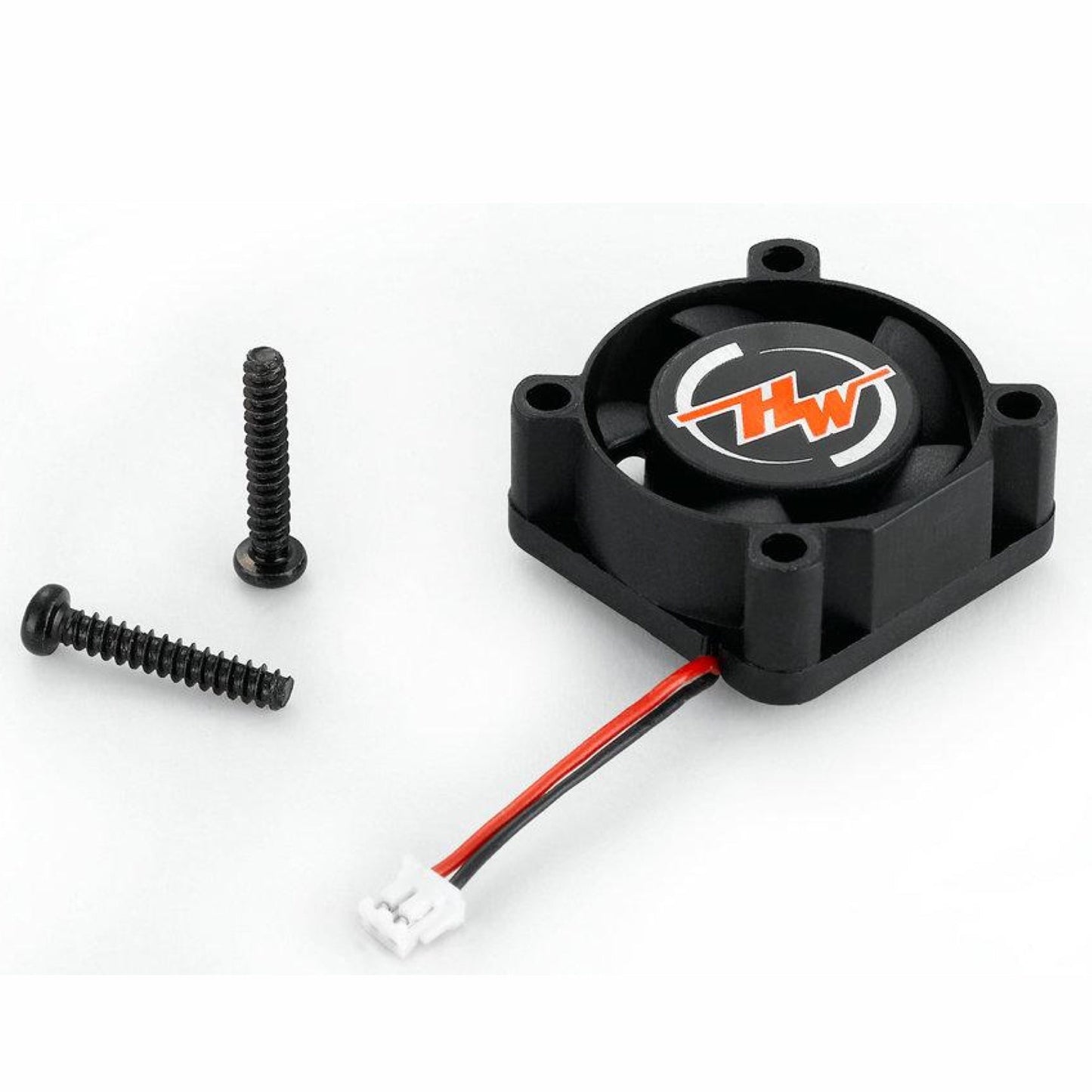

Hobbywing Cooling Fan 2510 Series, HWI-30860003

Hobbywing Cooling Fan 2510 Series, HWI-30860003

High Performance Cooling Fan for ESCs
AXE R1/R2 ESC
Xerun Stock Spec / 1s HD
XERUN-120A V2.1 SD /Xerun 90A & 60A
Ezrun WP 60A, 80A, Ezrun 60A
Justock & Xtreme
EZRUN MAX10 & MAX10-SCT
QUICRUN 1080 / 1080 G2 / 880 Dual

Use instructions:
Please choose the correct cooling fans for different applications.
        For 4-6 cell NiMH or 2S LiPo: No need to change the 5V cooling fan on the ESC
        For 7-9 cell NiMH or 3S LiPo: Please choose a 12V cooling fan or supply the 5V fan from the receiver (+6V)
        For 10-12 cell NiMH or 4S LiPo: Please choose a 12V cooling fan, and cut the output of the built-in BEC. Then supply the receiver with a UBEC (An additional external DC-DC regulator)

Specification:
Size:   5V: 24.5mm (L) * 24.5mm (W) * 10mm (H)
Weight: 7.2g
